A great introduction of Mamiya TLR lenses


Having been in photography one way or another since 1946, I have been exposed to many types of cameras and lens systems. It never occurred to me to research the physics of the optical lens. I merely took everything for granted � if it worked, or just ignored it if there were problems.

Lately, my interest in lens design has been restored. I think this is due to the rapid development in digital everything including cameras and the Internet. Reading the internet news groups dedicated to photography, I saw a very real ignorance in lens design and theory which rivaled my own. So I decided to do some latter day research to attain some degree of knowledge of lenses, at least for those I use.

This paper is restricted to the lenses made by Sekor for the Mamiya twin lens reflex cameras. I have chosen these as my experience has shown them to be quite excellent for my style of photography (Portrait, landscape, and sill life � please, no nature, sports, or other subject which move rapidly). I do not presume to endorse these products, they are simply available for me to explore. In fact I own lens systems that produce superior results.

A Brief Review of the Mamiya Lens Inventory

The Mamiya lenses were available in the following focal lengths; 55, 65, 80, 105, 135, 180, and 280. Table 1 contains the characteristics of each lens.

Table 1:

Lens Composition Picture Minimum Filter (mm) Lens Hood (mm) Shortest
55mm f/4.5 9 elements 7 groups 70� 30′ f/22 46 48 9 1/2 in. 2-17/32″ x 2-17/32″
65mm f/4.5 6 elements 5 groups 63� f/32 49 50 10 11/16 in. 2-21/32″ x 2-21/32″
80mm f/2.8 5 elements 3 groups 50� 40′ f/32 46 46 1 ft, 1-15/16 in.
3-25/64″ x 3-25/64″
((8.6cm x 8.6cm)
105mm f/3.5 5 elements 3 groups 41� 20′ f/32 46 46 1 ft. 11in.
7-1/4″ x 7-1/4″
135mm f/4.5 4 elements 3 groups 33� f/45 46 46 2 ft 11-1/2 in.
7-1/4″ x 7-1/4″
180mm f/4.5 5 elements 3 groups 24� 30′ f/45 49 50 4 ft 2-3/4 in.
(1m 29cm)
10-53/64″ x 10-53/64″
250mm f/6.3 6 elements 4 groups 18� f/64 49 50 6 ft 8-3/4 in.
(2m 5cm)
1 ft 1/4″ x 1 ft.1/4″

55mm f/4.5

Mamiya Sekor 55mm lens
(photo courtesy of “B”)

Figure 1 Sekor 55mm f/4.5

Figure 2 Golden Navitar

The Sekor 55mm, figure 1, is by far the most sophisticated of the group. It is virtually unique, as it does not fall easily under an established design. It looks very much like Elgeet 揋olden Navitar� shown as reference in figure 2. The design of this lens is the reversed telephoto concept used to a great extent in wide-angle lenses. The differences are obvious in the two figures, the most significant one being the aspherical rear element in the Elgeet. Another is the position of the stop and the use of the thick, cemented magnifier in the Sekor.

65mm f/3.5

Mamiya 65mm
(Photo courtesy of Jim Greeley

Figure 3 Sekor 65mm f/3.5

Figure 4 Angenieux 9.5mm f/2.2


The Sekor 65mm lens shown in figure 3 is also of the reversed telephoto design. It is almost a copy of the Angenieux Retrofocus 9.5mm f/2.2 shown in figure 4, developed for the 35mm cameras in 1950 France. As both lenses were produced about the same time, it is hard to say which was original. The Angenieux Company coined the term 揜etrofocus� which has become an almost generic term for this lens design today. It is one of the more elegant of the TLR group.

80mm f/2.8

Mamiya 80mm lens
(photo courtesy of “B”)

Figure 5 Sekor 80mm f/2.8

Figure 6 Elmarit 90mm f/2.8 for Leica


The next three lenses seem to belong to a group known as Modified Cook Triplets. In the 1930s, Max Berek of Leitz, designed several lenses for use in Leica cameras, based on the Cook Triplet. The Sekor 80mm, figure 5, is one of these. The similarity to the 揈lmarit�, shown in figure 6, is immediately evident. The 揈lmarit� is a relatively new design, dating from 1958. The Sekor 80mm is considered to be the 搉ormal� lens for the Mamiya 6×6 format and operates with excellent aberration correction and resolution. Mine seems to be a little subject to flare, which can easily be minimized by use of the proper hood.

105mm f/3.5

The Sekor 105, figure 7, is probably my favorite lens to work with in most situations be it landscapes or portraits. The element configuration is the same as the Leitz 揌ektor�, a Heliar type lens, shown in figure 8.

Figure 7 Sekor 105mm f/3.5

Figure 8 Leitz Hektor 28mm f/6.3

Hans Harting designed the Heliar in 1900 for Voigtlander as he tried to produce a symmetrical modification of the Cook Triplet. To improve the apparently poor performance of his original design, he later modified his original design with the cemented surfaces convex toward the stop. The modification shown in the Leitz design conforms to Harting抯 successful design. The Sekor design is a further modification.

135mm f/4

Mamiya 135mm f/4.5 lens
(photo courtesy of “B”)

Figure 9 Sekor 135mm f/4.5

Figure 10 Leitz “Elmar” 135mm f/4.5


Yes, the 135mm, figure 9, is a straightforward 揟essar� type similar to one of many 揈lmar� types used on Leica cameras since 1931. This has certainly been a most successful design and is being produced today in some configuration.

180mm f/4.5

Mamiya 180mm f/4.5
(Photo Courtesy of “B”)

Figure 11 Sekor 180mm f/4.5

Figure 12 Ernostar f/2 by Bertele


The 180mm Sekor, figure 11, is a unique design for which I have not found a good historically representative type. It is not a true telephoto lens but resembles the old 1920s Ernostars by Bertele. One of these, an f/2 from 1923 is shown in figure 12. But there are significant differences including: the cemented elements in the first group are reversed, the second element of the Ernostar is a cemented doublet, and the final element of the Sekor is a planar meniscus.

Bertele designed the Ernostars when working for the Ernemann Company. When the company was taken over by Zeiss Ikon, Bertele began work on an improved Ernostar design. Later still Bertele used the improved design as a basis for the famous Sonnars. So although the Sekor can trace a pedigree with the Sonnars, they have very little in common.

250mm f/6.3

250mm f/6.3 lens side view
(photo courtesy of “B”)

Two telephoto lenses from 1891. (a) Dallmeyer (b) Miehte

Sekor 250mm f/6.3


The Sekor 250mm, figure 13, is a typical two-group telephoto design. It follows no classic design that I have found. Telephoto lenses are characterized by having a positive magnifying front group and a negative group at the rear. Sekor抯 6-element lens has superior aberration correction and very little flare giving good contrast, resolution, and accuracy corner to corner with the Mamiya 6×6 format.


Most of the historical data presented in this paper was found in the following:

Rudolf Kingslake, 揂 History of the Photographic Lens�, Academic Press, Inc., San Diego, Ca. 1989


Zeca Flex TLR Germany

The Zeca-Flex was made by Zeh-Camera-Fabrik in Dresden and was one of a small breed of dual-lens reflex folding. What differentiates it from other TLR folding, as Perfekta Welta and Superfekta, was the way he uses visualization and taking lenses of different focal lengths. This allowed visualization of the lens to sit about 4 cm behind the taking lens. For the focal length of the lens viewing is shorter than that of the taking lens, the two have been mechanically linked such that the top lens moved by a smaller amount than the lower during focusing. This meant the display screen could be made ​​smaller than the size and negative, in turn, meant a much flatter package when the camera was folded.

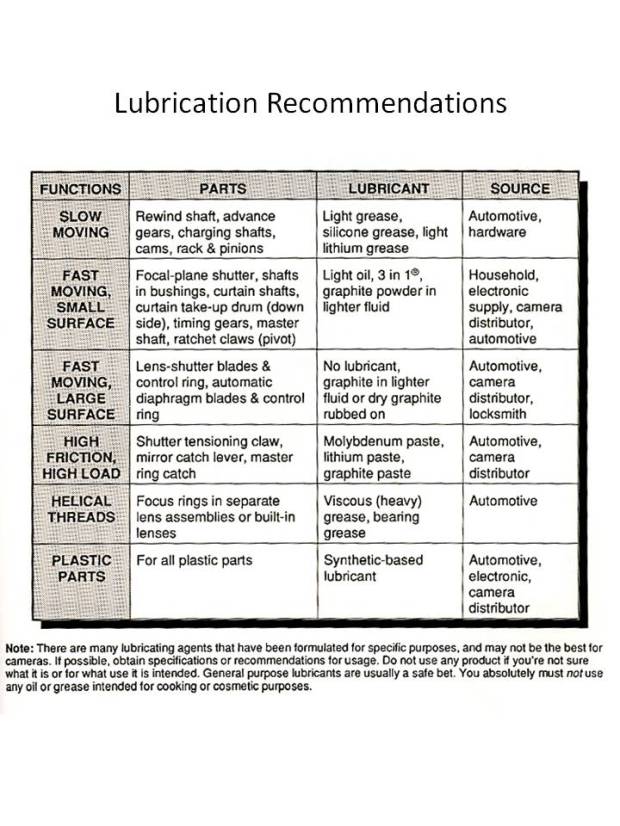

Cleaning and Lubricating Old Cameras

The attached documents discusses the following topics:

  • Mechanical Cleaning
  • Oiling
  • Lubricating with Graphite Powder

This is extracted from the famous camera repair book “Camera Maintenance & Repair – A comprehensive, fully illustrated guide”.

Cleaning and Lubricating
