Tag Archives: japanese

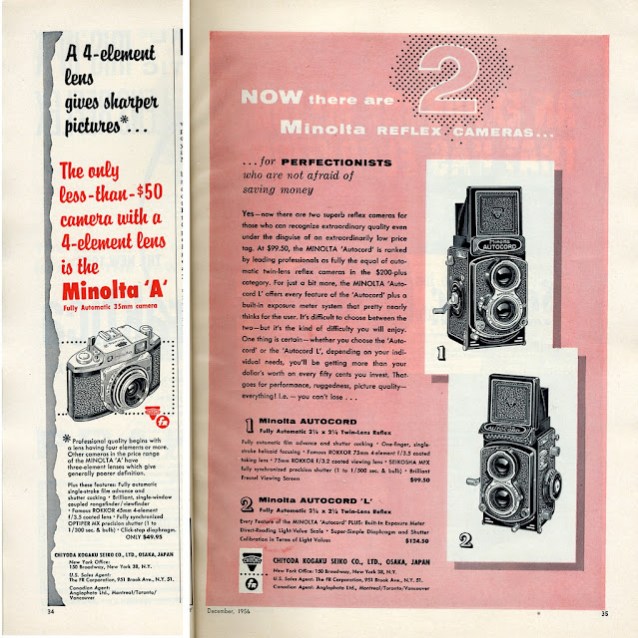

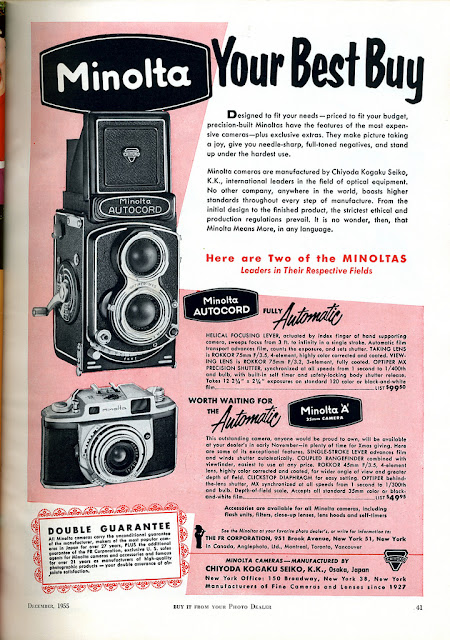

Vintage Minolta Autocord Advertisement

vintage everyday: Vintage Minolta Camera Advertising.

Pretty cool blog post on vintage camera advising. see how TLR was advised 40-60 years ago!

Advertisements

Yashica Mat 124 in-depth review

Yashica Mat 124 – Review by Karen Nakamura

Overview and Personal Comments

The Yashicamat 124 is a twin-lens reflex (TLR) camera that is basically a copy of the Rolleiflex. It uses 120 size film (medium format) to shoot 6 x 6 square format photos (same as a Hasselblad). Using the text or images on this website without permission on an ebay auction or any other site is a violation of federal law.

I purchased this camera a couple of years ago to see if medium format was my thing. It was, the Yashica had excellent resolution and the tonality of medium format positives just blew me away.

Unfortunately, I was so entranced by the Yashicamat, I later on bought a Mamiya RB67 system and never used the Yashicamat after that. The RB67 is for the studio, while I have a Koni-Omega Rapid M for outdoor medium format photography. It’s just a bit difficult to frame when things are reversed in the TLR finder. I like the look of the 124 and the little Yashica 44LM, but I doubt I’ll ever use them.

Interesting quirks

The Yashicamat 124G is the successor to the 124. Everyone seems to want the 124G. The only change the 124G has was to add Gold meter contacts. That’s it. Which is odd since I’ve seen 124Gs that went for $400, but 124s are relatively cheap. They use the EXACT SAME OPTICS! Hmm.. People are pretty stupid. You don’t buy Yashicamats for the lightmeter, heck most of them are non-linear anymore. They use the EXACT SAME OPTICS!*

* OK, so the 124G had a nicer finish on the outside, BUT it also used wimpier (i.e., cheaper) gears. The 124 has sturdier internal mechanisms.


Sample Pictures

The Yashicamat 124 takes simply astoundingly sharp pictures. Here are some samples shot on Fuji Velvia (an E-6 slide film) and scanned with the Epson Perfection 2400, a standard flatbed scanner with a transparency adaptor that costs around $300. The resulting files are 5400 x 5400 pixels large, or 90 megabytes in size at 24 bit depth (at the scanner’s full 48 bit depth, the files are 180 megabytes large). That’s the equivalent of a 30 megapixel digital camera! You can print the scans at 240 dpi at a whopping 22″ x 22″ without interpolating. Try that on your $2000 digital camera!

A reduced version of each photo is shown along with a 8x zoom up. To put the zoomed in version in perspective, to view the zoomed version at 100%, the original file would have to be printed at almost 100″ x 100″ or an 8′ x 8′ mural. The actual slide shot is even sharper than the scan as the Epson 2450 is really a 1200 dpi scanner, not a 2400 dpi one.The slides themselves are extremely crisp. You can count the number of leaves on the trees in the autumnal photo (sample #2).

If you want the original sample files (about 3 megabytes compressed at JPEG 8; about 20 megabytes compressed at JPEG 12), please let me know and I will arrange to make them available.

The slight unsharpness here is caused by the scanner. With a loupe, you can make out the features of this person and easily identify him. Remember that this is the detail from an image blown up to about 8′ x 8′!


Technical Details

Camera Name
Yashicamat 124
Manufacturer
Yashica
Place of Manufacture
Body: Japan
Date of Manufacture
1968 ~ 1971
Focusing System
Twin lens reflex
Fixed Lens
Taking lens: 80mm f/3.5 Yashinon (multicoated)
Viewing lens: 80mm f/3.5 Yashinon (multicoated)
-Yashinons are 4 element Tessar types
Shutter
Copal S-V
1 sec – 1/500 sec.
Metering System
CdS cell mounted on camera body (above the lens ATL) – uncoupled match needle type
GN 1-10
Flash Mount
M-X switch
Cold-shoe mount on left side
PC-cable attachment on front side
Film type / speeds
Type 120/220 film (medium format)
ASA
Battery type
PX625
Use of this chart, text, or any photographs in an eBay auction without permission will result in an immediate IP violation claim with eBay VeRO. Violators may have their eBay account cancelled.

About Yashica/Kyocera/Contax

The Yashica Corporation began making cameras in 1957, releasing its first model in 1958 (the Yashica 35). They produced a very well regarded series of twin-lens-reflex (TLR) medium format cameras under the Yashica-Mat brand and 35mm rangefinders under the Yashica Electro name. Yashica became a subsidiary of the Kyocera Corporation in October of 1983. For the next two decades, Kyocera continued to produce film cameras under the Contax marquee, including a very nice 35mm Contax SLR series (which used Zeiss lenses), a medium format system, and the Contax G1/G2 rangefinders (also with Zeiss glass).The Yashica name was only used for a small series of dental cameras and point and shoots. In March of 2005, Kyocera announced that it would cease production and sales of film and digital cameras under the Contax marquee. Thus ends 30 years of a wonderful camera line. The Contax name will most probably revert back to the Zeiss foundation, thus who knows what will happen in the future. Right now, the name “Yashica” appears to have been bought by a Chinese company for their inexpensive digital cameras.


On the Net

Minolta Autocord MVX Restoration/ Repair

Blow is another instruction of Minolta Autocord Restoration/ repair.

Please pardon the english. This is a direct translation done by google translate.



But is coming off the front plate and twin-lens reflex Kapa~tsu peels the skin of ordinary table, removing a few screws, this is a little different.

They can get the cover is only eight of the letter.

I opened the shutter anyway.

Only this part is coming off. In order to remove the front plate there is a need to remove the shutter.

  • Wait and see and lubricate all moving parts of the shutter.Although there is no inconvenience has occurred so far, and Choi worry.
  • Bad feeling are likely to need to open the head section.
  • Thorough restoration of the shutter.
Again because decomposition symptom that sometimes non-charge

  • Repair bete noire of the twin-lens reflex is that they peel off the outside leather. Had been replaced with synthetic leather firm this individual been removed once already.

  • I opened a very clean. Accuracy of the parts is much better compared to the flex Aires. I fall a little compared with the Rolleiflex.
  • This large image here in the.

Symptoms were reproduced Fortunately turn off the shutter and have persistently put a dummy film. It is trapped in here there is a slight dent in this part of the arrow of the cam.

  • Revealed after polishing by hand and see a different angle.
  • Formatted with a diamond file, was finished in the compound.
August 5, 2004

Got a junk auto code of one another. There is not enough trouble stroke of the shutter charge.

  • Ring is listed in this order from left to right. For the charge for the shutter lock, second from left is the rightmost.
  • Correct behavior is OK with pliers.
  • This trouble was encountered in the auto code then the number of units.
  • It may be that there is a screw to adjust the stroke at the side version, has been cleared by covering the pipe outer diameter of 3.5mm brass lever on the shutter.

  • Helicoid structure is exactly the same as let flexors.
  • Meopta web site of 1948 was the launch of the flexors Let II and see. On the other hand, the design of the Minolta staff may have been referring to the flexors let to think that it was released Autocord MXS is the first of 1955.

Auto code Mushiritora the hull. Broken up and crispy when the material of the skin peel off the synthesis of this era is not well.

  • Caused the pattern to scan Hagase so miraculously well.Let’s print out and use it because the two gray scale GIF images.
  • I I need to be a decent PDF files in Illustrator to trace someone (mode justification by faith)
  • Please forest was to trace and if you write the @ sama Osaka. Thank you. Please use the How to come here.For the top must match the actual products. PDF file Kawaha auto code
  • Be a bit short up and down Why do not you print the PDF file. (300dpi) image scan of the actual source of information
  • .

Affixed to the print cut synthetic leather.

  • Let me patrol the 100-yen shop, so put some good material and variety.
  • This is finished using the binders of the 100 yen shop.

Leather paste this might be more
